Pure Bottled Automatic Water Filling Machine , Mineral Water Bottling Machine 7.5KW

Name: Pure Bottled Automatic Water Filling Machine Mineral Water Bottling Machine 75KW
Brand: Higee
Price: 1 USD

Brand Name : Higee

Model Number : CGF40-40-12

Certification : CE

Place of Origin : China -Shanghai

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 20 sets per month

Delivery Time : 30 working days

Packaging Details : Wooden case

Driven Type : Electric

Material : Stainless Steel

Capacity : 8000-15000BPH

Processing : Bottle Packing Machine

Voltage : 110V|220V|380V

Application : Pure Water|mineral Water|beverage

After-sales Service Provided : Engineers available to service machinery overseas

Name : CGF40-40-12Rinsing, Filling, Capping 3in1 Unit Machine，Pure Bottled Water Production Line

Contact Now

CGF40-40-12Rinsing, Filling, Capping 3in1 Unit Machine,Pure Bottled Water

Production Line

Description
Our CGF40/40/12 Washing,Filling,Capping 3in1Machine,is a new developing products based on introduction, digestion and absorption of domestic and foreign similar products, It also combined many years of production experience. This machinery set the filling and capping in one, and droved by a drive motor. With a high degree of automation, compact structure, beautiful appearance, convenient operation and maintenance, safe and reliable production capacity continuously adjustable characteristics, it is currently the ideal of non-carbonated liquid beverage filling production equipment.
Its main purpose and scope available:
Mainly used for filling and capping the mineral or pure water,fruit juice with the round and shaped PET bottles at room temperature,the main motor adopts the transducer.

Technical Features
Main Performance

Capacity	8000-15000BPH
Filling Heads	40
Capping Heads	12
Washing Heads	40

Main parameters

Main Power	7.5KW
Hopper motor	0. 18KW
Operating voltage AC	380V
Water consumption(sterile water)	≈8.5M³/h
Water pressure	0.4Mpa

Dimensions

Equipment Dimensions	LxWxH 4500x3300x2750(unit:mm)
Equipment Weight	≈6000Kg

Technical specifications

Equipment Configuration	Conveyor with stucking in bottle body
Bottle into System	Wind conveyor (Length:1.5M)
Bottle out System	Chain conveyor(Adjust speed,length:1.5M)
Filling	Normal Pressure
Capping	Magnetic cap,Capping torque adjustable
Motor	Made in Zhangjiagang
Water pump	Made in Zhangjiagang
Inverter	Mitsubishi(Japan)
PLC	Mitsubishi(Japan)
Touch Screen	Mitsubishi(Japan)
Electric	Schneider
Material	Stainless Plate( South Korea)

Pure Bottled Automatic Water Filling Machine , Mineral Water Bottling Machine 7.5KW

Competitive Advantage
1. Best price & best quality
2. Customized according to customer needs
3. Delievery in time
4. Life-time good service

Product Tags:

automatic water bottling machine

water filling equipment

Quality Pure Bottled Automatic Water Filling Machine , Mineral Water Bottling Machine 7.5KW wholesale

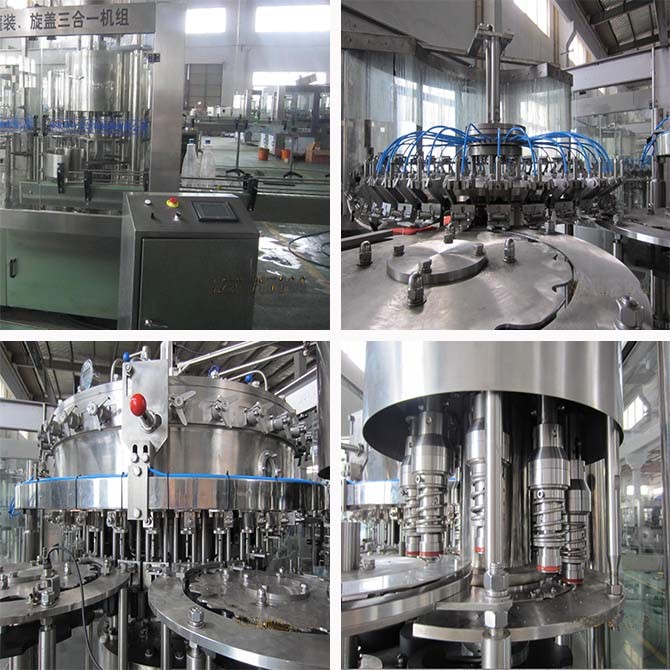

Pure Bottled Automatic Water Filling Machine , Mineral Water Bottling Machine 7.5KW Images
